HRO Horizon North Sea
Contact Us For Price
SKU

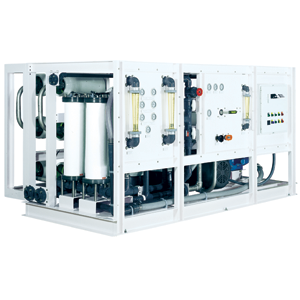

HRO Horizon North Sea
When a huge volume of fresh water is needed, regardless of location or conditions, Horizon North Sea is the solution. This system produces from 11,000 to 44,000 gallons (41,639 to 166,558 liters) of fresh water per day. These systems have the power to supply potable water to shipping vessels, large hotels, villages, and cruise ships. The Horizon North Sea is constructed with only the best quality marine-grade materials and components.
HRO Horizon North Sea Water Maker Dimensions

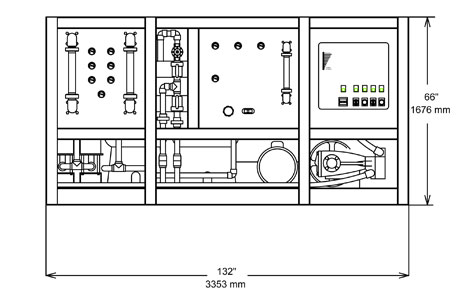

North Sea Horizontal - Double Length Membrane Assembly:

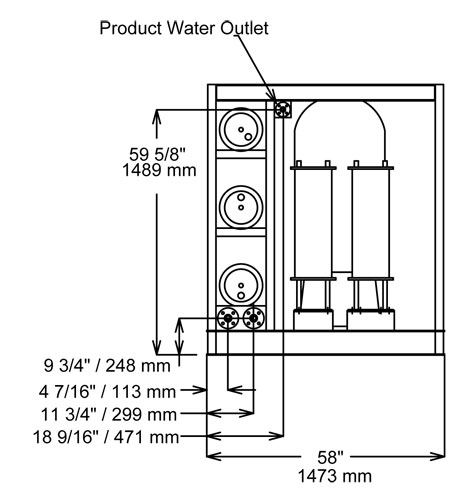

North Sea Horizontal - Single Depth Membrane Assembly:

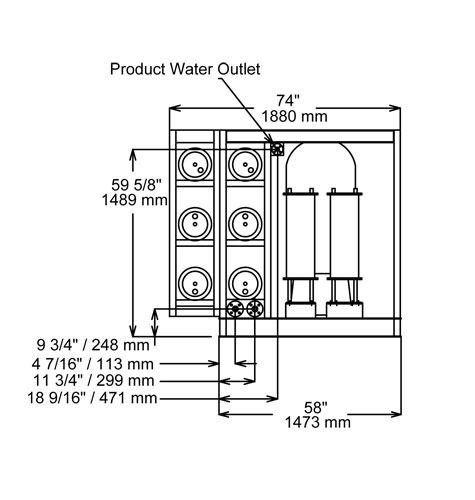

North Sea Horizontal - Double Depth Membrane Assembly:
Shipping Weight
| Model | Weight | Dimensions |
|---|---|---|
| S2 | 4,300 lbs approx. | 132"W x 58"D x 66"H |
| D2 | 5,400 lbs approx. | 132"W x 74"D x 66"H |
| D3 | 6,300 lbs approx. | 155"W x 74"D x 66"H |
Options and Spares will increase shipping weight and may increase shipping carton size. The shipping weight listed above is an approximate weight.
HRO Horizon North Sea Water Maker
When a huge volume of fresh water is needed, regardless of location or conditions, Horizon North Sea is the solution. This system produces from 11,000 to 44,000 gallons (41,639 to 166,558 liters) of fresh water per day. These systems have the power to supply potable water to shipping vessels, large hotels, villages, and cruise ships. The Horizon North Sea is constructed with only the best quality marine-grade materials and components.
North Sea Watermaker Features:
- 11,000 to 44,000 gallons per day / 41,639 to 166,558 liters per day
- 458 to 1,833 gallons per hour / 1,735 to 6,940 liters per hour
- Dual Multimedia Filters
- Ultra Violet Sterilizer (optional)
- Chemical Duty Motors (optional)
- Unique Low Voltage Controlled Circuitry
- Exclusive Solid Salinity Meter, an essential tool for product water monitoring.
- A failsafe Product Water Diversion Valve allows only safe drinking water to enter storage tanks.
- Reverse Osmosis Membranes are high rejection, high yield, commercial grade and chemically resistant.
- Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal.
- Exclusive high efficiency Booster Pump
- Micro Processor Controlled Electronics provide state of the art technology and reliability with weekly Automatic Fresh Water Flush Timing (optional).
- Stainless Steel, liquid filled exterior and interior Pressure Gauges for accurate measurement of system functions and corrosion resistance.
- New Flow Meter for visual monitoring of the product water flow
- All High Pressure Connections are composite 316L Stainless Steel for maximum corrosion and rust resistance.
- Water Quality Indication LED
Benefits:
- A comprehensive manual with exploded part views and and connection drawings for installation, operation, and maintenance.
- Worldwide Service and Sales Network
- One-Year Warranty on the System and Membranes.
- Technical service and repair department dedicated to system performance excellence.
| Manufacturer | HRO | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Specifications | HRO Horizon North Sea Water MakerSystem Specifications:Product Water Produced Per Hour of Operation:
HRO Horizon North Sea Specification RangesSalt Rejection (Chloride Ion): Minimum 99.2%, Average 99.4% Product Water Temperature: Ambient to feed water temperature. Salinity Monitoring:Automatic electronic monitoring. Temperature compensated with solid state "DOT LED" continuous readout in micromhos per cm3 and of a fail safe design. Salinity Range: Sea Water Systems (SW suffix) up to 35,000 ppm TDS (Nacl) Temperature Range:Min. 33°F / .5°C Max. 122°F / 50°C System Feed Water:Flow: 50Hz, 3.5 gpm / 13.2 lpm; 60Hz, 3 - 4.2 gpm / 11.4 - 15.9 lpm Reverse Osmosis Membrane: High Rejection/High Yield aromatic tri-polyamind, thin film composite, spiral wound, single pass reverse osmosis membrane element. SW suffix use Sea Water Elements, and HR suffix use High Rejection Elements. Chlorine Tolerance:0.1 ppm pH Range:3-11 (typical seawater pH is 8) System Pressure:
System OperationTypical seawater has a salinity of 35,000 ppm TDS and an average temperature of 77°F / 25°C. Nominal: 850 psi / 59 bar / 59.7 Kg/cm². (Brackish varies w/ppm) HRO Horizon North Sea Model Weights:
External Installation Water Connections:Pipe sizes to be supplied by the installer for connection of the Horizon Reverse Osmosis supplied components.
High Pressure Pump Electric Motor: (HP = Horse Power; FLA = Full Load Amperes, LRA = Locked Rotor Amperes @ StartUp) High Pressure Pump Electric Motor Three Phase:
Booster Pump Electric Motor Three Phase:
Feed Water Pump Electric Motor Three Phase:
Recommended Circuit Breaker: The actual final system configuration may have an optional Feed Water Pump and/or different size Booster Pump therefore size your Circuit Breaker accordingly. The below chart is an approximation assuming 3 horse power High Pressure Pump and 3 horse power Booster Pump.
|
