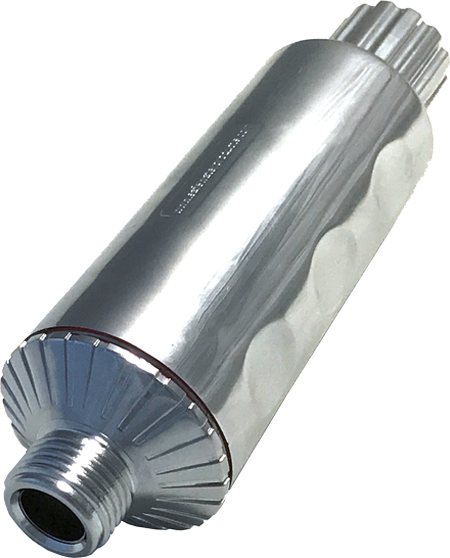

Inline-Safe Legionella Filters
Contact Us For Price
SKU
Inline-Safe Legionella Filters
INLINE-SAFE LEGIONELLA FILTERS Data Sheet
|
Technology: |
Hollow Fiber Membrane |
|
|
|
1 Product performance is dependent on incoming water conditions 2 Tested by Industrial Microbiological Services Ltd UK |
|
||
|
Performance 1: |
Rated Capacity |
5,000 litres |
|
|
Life Time |
Several months depending on water quality and usage |
||
|
Flow Rate |
6 l/min at 2 bar |
||
|
Compliance: |
Biological retention 2 |
bacteria log7 (IMSL) |
|
|
Mechanical effects |
turbidity reduction |
||
|
Material safety |
extraction tests |
||
|
Structural integrity |
hydrostatic pressure 8 bar |
||
|
Operating conditions: |
Max. operating pressure |
6 bar |
|
|
Operating temperature |
Min. 0℃; Max. 40℃ 60℃ for 30 min. during lifetime |
||
|
Replacement interval |
Several months depending on water quality and usage |
||
|
Chlorine exposure |
100 ppm |
||
|
Dimensions & Weight: |
Connection |
Storage & Handling |
|
|
|
|||
|
Overall length 130 mm |
To main 1/2" BSP |
Keep dry during storage |
|
|
Overall diameter φ58 mm |
Protect against freezing after first use |
||
|
Dry weight system 90 grams |
Handle with care; don’t expose to shocks |
||
|
Product Name: |
Product Code |
Packaging |
Sterilised By Gamma Irradiation |
|
Inline Filter |
IFS (Silver) |
Inline-Safe |
50 pcs/box |
|
Inline Filter |
IFW (White) |
Inline-Safe |
50 pcs/box |
|
Hollow Fiber Membrane |
SS-2 |
Hollow Fibre Membrane |
300 pcs/box |
Available Individually If Required
Safe Water Products Inline-safe Legionella Filter is a powerful and approved legionella filter to effectively stop Legionella pneumophila. Simply connect the Inline-Safe Legionella Filter to the water supply with its standard sized 1/2 inch male/female end to ensure complete safety.
The Inline-Safe Legionella Filter is a high quality product that enables users to replace legionella filters rather than throw away a perfectly serviceable filter housing.
The costs of replacing the legionella filters are significantly less than total product replacement making the Inline-Safe Legionella Filter an excellent choice for price conscious customers.
The Inline-Safe Legionella Filter is for use in showers, under sinks or on an ice machine or other water device to ensure that bacteria free water is produced.
| Brand Codes | IFS SS2 |
|---|---|
| Compatible | Octo Marine |
| Sizes | 130 x ø58mm |
| Options | ss-2 Replacement filter, Tap-Safe, Shower-safe |
| Product Uses | - |
