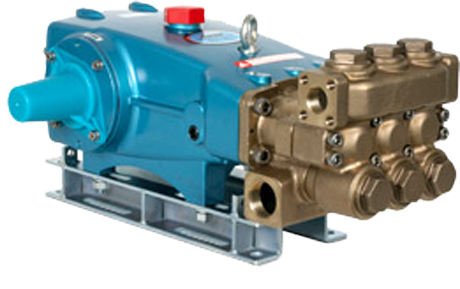

CAT Pump Model 3527
Contact Us For Price
SKU
CAT Pump Model 3527
The CAT pump 3527 is a triplex positive displacement, reciprocating, plunger pump, constructed of Nickel Aluminum Bronze manifolds
The CAT pump 3527 is a triplex positive displacement, reciprocating, plunger pump, constructed of Nickel Aluminum Bronze manifolds, 316SS valve assemblies, solid ceramic plungers and standard NBR [Buna-N] seals and o-rings. These higher capacity plunger pumps are suitable for multi-gun and multi-nozzle, industrial high pressure systems and pumping special liquids such as salt water. [See also 316SS models]
| Technical Specifications | |
|---|---|
| Max Flow: | 23 gpm |
| Min Pressure: | 100 psi |
| Max Pressure: | 2000 psi |
| Inlet Port Size: | 1 1/2" NPT(F) |
| Discharge Port Size: | 1" NPT(F) |
| RPM: | 800 |
| Drive Type(s): | Belt |
| Material: | Stainless Steel (SS) |
| Octo Marine Code | 003527 |
|---|---|
| Brand Codes | 3527 |
| Manufacturer | CAT Pumps |
| Compatible | Octo Marine, Cat Pumps |
| Sizes | 618 x 460 x 247 mm |
| Material | 316 Stainless Steel |
| Options | Seals and vales also available in FPM or EPDM on request |
| Product Uses | Food, Agriculture, Chemical, Oil, Gas and Petrochemical, Pharmaceutical and Pressure Washing |
